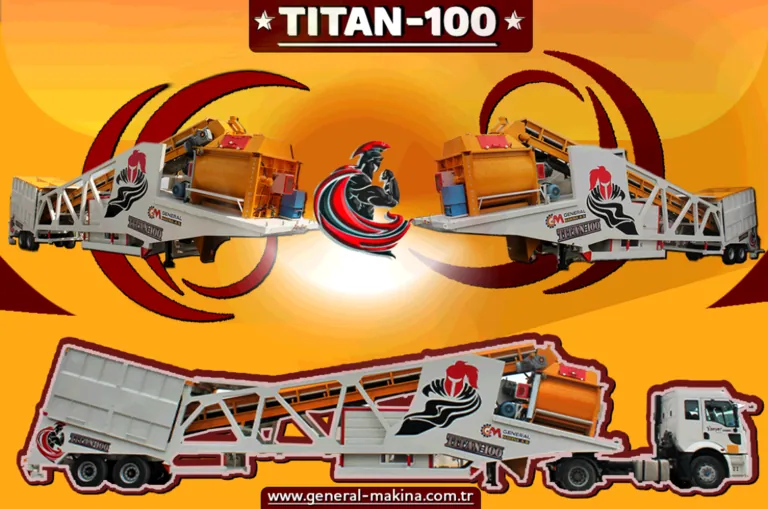

Titan-100 Mobile Concrete Batching Plant Shipped: Technical Data Table
Published: · Updated:
We have completed the manufacturing, factory testing and shipment of the Titan-100 mobile concrete batching plant, which can produce 100 m³ of ready-mix concrete per hour. We wish the plant's new owner every success.
Technical data of the Titan-100 mobile concrete batching plant:
| Model | M-Titan 100 |
| Plant capacity (m³/h) | 100 |
| Mixer type | Twin-shaft mixer |
| Mixer compacted concrete volume (m³) | 2 |
| Mixer dry volume (m³) | 3 |
| Mixer motor power (kW) | 2x45 |
| Aggregate hopper (m³) | 4x15 |
| Belt feeding the mixer (mm) | 1000x12000 |
| Aggregate scale capacity (kg) | 4800 |
| Cement scale capacity (kg) | 1200 |
| Water scale capacity (l) | 600 |
| Admixture scale capacity (kg) | 30 |
| Cement screw conveyor size (mm) | Ø273x8000 |
| Cement silo capacity | 100 t, fixed type |
| Compressor power (kW) | 7.5 |
