General 01 Mobile Crusher | Impact Primary+Secondary 120-180 tph | General Makina

General 01 — Mobile Crushing & Screening Plant (GPS 1210 Impact)

The General 01 mounts a GPS 1210 triple-pendulum impactor on a single wheeled chassis and performs primary and secondary crushing in that one machine. It runs 120-180 tph at high reduction on 700 mm feed. A touchscreen panel, soft-starter and internet-linked remote monitoring can be added as options.

General 02 Mobile Crushing Plant | 180-250 tph Impact Plant | General Makina

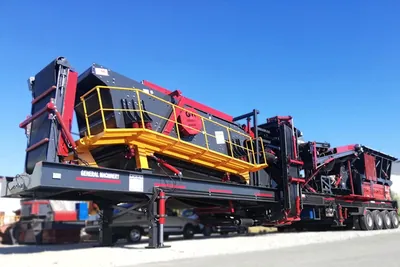

General 02 — Mobile Impact Crushing & Screening Plant

The General 02 is a wheeled crushing-and-screening plant driven by a GPS 1413 primary impactor. It puts out 180-250 tph, opens the widest inlet in the family at 1000 mm, and carries a 2000×5000 mm four-deck screen with a 660 kVA power unit for high-tonnage closed-circuit work on a single chassis.

General 03 Mobile Crushing Plant | 250-350 tph Flagship | General Makina

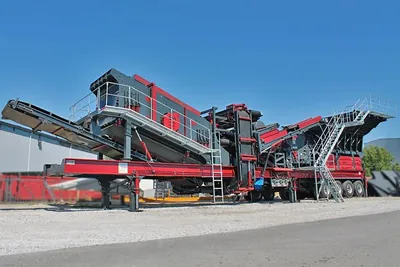

General 03 — Mobile Impact Crushing & Screening Plant (Flagship)

The General 03 heads the wheeled General family, powered by a GPS 1415 primary impactor. At 250-350 tph, with a 2400×5000 mm four-deck screen, a 750 kVA power unit and a 4-axle international-transport chassis, it carries near-stationary output in a form you can still move.

General 800 Mobile Crusher | Primary Impact 80-120 tph | General Makina

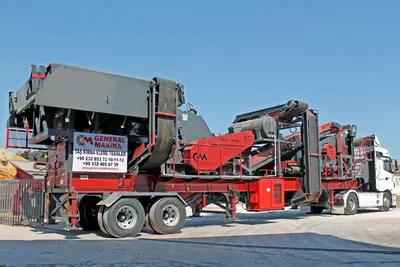

General 800 — Mobile Crushing & Screening Plant (Primary Impact)

The General 800 packs a single-chassis, closed-circuit wheeled plant around a PDK 1280 primary impactor. Feeding 600 mm rock at 80-120 tph, it gives a high reduction ratio and cubical aggregate, a natural fit for limestone and low-abrasive stone. It ships CE and ISO 9001 certified with a 1-year warranty on non-wear parts.

General 640 Mobile Crusher | Jaw+Impact 40-70 tph | General Makina

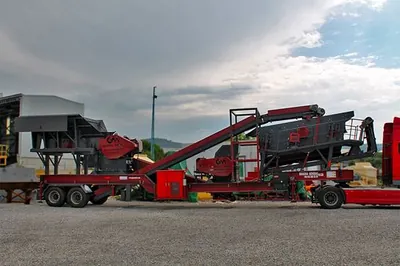

General 640 — Mobile Crushing & Screening Plant (Jaw + Impact)

The General 640 is a tow-behind, closed-circuit wheeled crushing and screening plant that pairs a GPJ 60 jaw with a GNR 50 impactor at 40-70 tph. It takes 500 mm feed, travels on one truck and is up and running within minutes on its hydraulic legs. As the smallest and most affordable model in the range, it is tuned for a steady, reliable rate on hard, abrasive rock.

General 950 Mobile Crusher | Jaw + Impact | 120-180 tph | General Makina

General 950 — Mobile Jaw + Impact Crushing & Screening Plant

The General 950 is a wheeled plant that sets a GPJ 90 primary jaw ahead of a DMK01 secondary impact crusher. 120-180 tph, 800 mm feed, 1600×5000 mm triple-deck horizontal screen. Built for hard, abrasive rock — basalt, granite, iron ore — moved on one truck and running in 30 minutes. It is the impact-secondary twin of the 944.

General 944 Mobile Cone Crusher | 120-180 tph Basalt Granite | General Makina

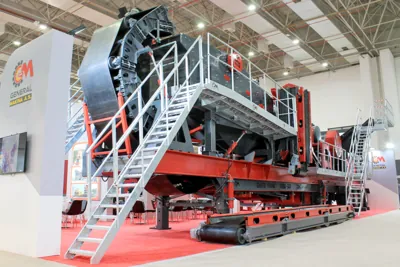

General 944 — Mobile Jaw + Cone Crushing & Screening Plant

The General 944 pairs a GPJ 90 primary jaw with a GM430 secondary cone on a wheeled crushing-and-screening chassis. At 120-180 tph it breaks hard, abrasive stone — basalt, granite, iron ore, chrome, quartz — with long metal life and cubical product. Its cone secondary is what sets it apart from the impact-secondary 950.

GNR-MC110 Mobile Jaw Crusher | Twin Chassis | 200-300 tph | General Makina

GNR-MC110 — Twin-Chassis Mobile Jaw Crushing & Screening Plant

The GNR-MC110 is a twin-chassis wheeled plant pairing a GPJ 110 primary jaw with a DMK03 secondary impact crusher. 200-300 tph, 900 mm feed, 2000×6000 mm four-deck screen. The primary and secondary groups run independently, and the primary can work on its own. It is the family's highest jaw-primary capacity model.

GNR-MVSI 900 Mobile VSI Crusher | Sand Maker | 90-180 tph | General Makina

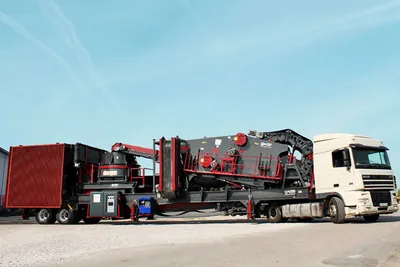

GNR-MVSI 900 — Mobile Vertical Shaft Impactor (VSI) Sand & Shaping Crusher

The GNR-MVSI 900 is a wheeled mobile sand and shaping plant with a VSI (vertical shaft impactor) tertiary crusher. 90-180 tph, 50 mm feed, 0-20 mm output; it makes cubic manufactured sand and fine aggregate. At 850 kVA it is the group's highest power unit — a shaping stage added behind a primary/secondary plant.

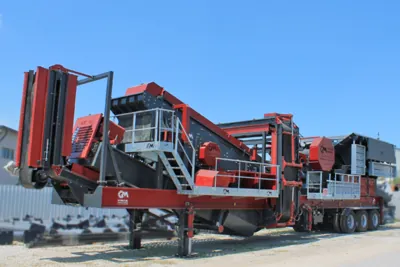

Mobil 90 — Jaw Crushing, Washing & Screening Plant

The Mobil 90 combines a jaw crusher, a washing screen and a twin fine-material screw washer on a single wheeled chassis. Its GPJ 90 jaw accepts feed up to 800 mm and the plant crushes, washes and screens riverbed and clayey material in one pass at 90-150 tph. The 0-5 mm sand fraction is recovered without loss to water.

A mobile crushing plant is a full crushing-screening unit on a wheeled (trailer) chassis that can be towed from site to site. Versus stationary, it offers fast setup and mobility; versus tracked, cheaper road transport.

Model family

The General family spans a wide capacity range: General 640 (jaw+impact, 40–70 tph) for compact jobs, General 800 (primary impact, 80–120 tph), General 944 (mobile cone, 120–180 tph, basalt/granite) and General 01/02/03 (impact plants rising from 120 to 350 tph). GNR-MC110 dual-chassis jaw (200–300 tph) and MVSI 900 mobile VSI (sand) complete the line.

Selection tip

For abrasive material (granite, basalt) a jaw+cone configuration (e.g. 944) fits; for soft limestone an impact plant (e.g. 800/01) gives high reduction and cubical product. Capacity scales from a single-chassis compact unit to a multi-chassis high-tonnage line to match your fraction target.

Full-plant bridge

The mobile unit runs standalone or with a mobile screen and conveyor as a complete mobile line. It is ideal for frequently relocating sites and favoured in road/infrastructure and rental-fleet work. For rough ground and step-by-step advance, also see tracked plants. Contact us for a quote by model and capacity.

Frequently Asked Questions

Which General mobile models exist?

General 640, 800, 944, 950, 01, 02, 03, GNR-MC110 jaw and MVSI 900 VSI; across 40–350 tph.

How fast does a mobile plant set up?

Wheeled units are designed to be towed in and started quickly; exact time depends on model and site prep.

Which model suits my material?

Jaw+cone (e.g. 944) for abrasive granite/basalt; impact plant (e.g. 800/01) for soft limestone. Share your material analysis.

Mobile or tracked?

Wheeled mobile if road transport and low cost matter; tracked if short in-pit repositioning is the priority.

How do I get a quote?

Send target capacity (tph), material and product fractions; we prepare a price with the right model and configuration.
