Washing & Screening Plants

GNR ME2060 — Fully Automatic Mobile Screening Plant

GNR ME2060 mobile screening plant: 200-350 tph capacity, 2000×6000 mm triple-deck screen, 20 m³ hopper with grizzly pre-scalping. Dry screening, full automation.

GNR ME1650 — Mobile (Dry) Screening Plant

The GNR ME1650 is a mobile DRY screening plant rated at 120-180 tph, carrying no washing unit. A sand hopper, vibrating screen and stockpile belts split 0-100 mm run-of-mine into clean, dry fractions. Clayey or wet feed instead calls for the YM series. It works on mains or generator on an 18,000 kg single chassis.

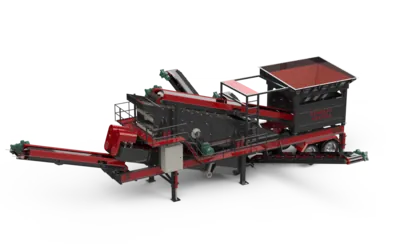

GNR YM1240 Mobile Sand Washing & Screening Plant | 60-100 tph | General Makina

GNR YM1240 — Mobile Washing & Screening Plant (compact)

The GNR YM1240 is a COMPACT mobile sand washing-and-screening plant rated at 60-100 tph. A sand hopper, washing screen and screw scrub river and mountain sand with water, stripping clay and silt. Screw-discharge moisture ~15-30%, or 8-20% with hydrocyclone+dewatering. Small footprint, single chassis; mains or generator.

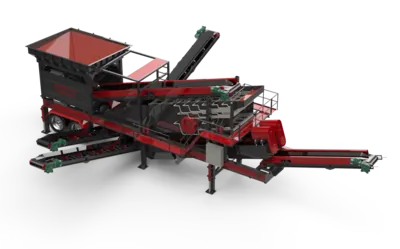

GNR YM1650 Mobile Sand Washing & Screening Plant | 120-180 tph | General Makina

GNR YM1650 — Mobile Washing & Screening Plant (top model)

The GNR YM1650 is the range's BEST-SELLING washing-and-screening plant at 120-180 tph. Its wide washing screen and screw turn out clean sand in several sizes. Screw-discharge moisture ~15-30%; down to 8-20% along a hydrocyclone+dewatering chain. The whole system gathers on a 21,000 kg single mobile chassis.

Mobile washing-screening plants wash and clean clayey, wet material and split it into fractions, removing unwanted fines/clay to produce specification-clean sand and gravel. The washing line is an area of strength for General Makina.

Model family

GNR ME1650 mobile dry screening (120–180 tph) is for wash-free fractioning; GNR YM1240 (60–100 tph) and GNR YM1650 (120–180 tph) mobile washing-screening handle washing and screening of dirty material. The wheeled design allows fast relocation between sites.

When is washing needed?

If the material holds clay, silt or high moisture, dry screening is not enough; washing delivers the clean aggregate accepted in concrete and asphalt. A dewatering screen is used with it to lower sand moisture to an acceptable level.

Full-plant bridge

The washing-screening plant runs standalone or added at the crushing line outlet. For stationary washing see the mineral washers category; for dry fractioning see vibrating screens. Contact us for a quote by model and capacity.

Frequently Asked Questions

Dry or wash screening — which do I need?

If the material has clay/silt/high moisture, washing (YM series); for clean dry material, dry screening (ME series) is enough.

Which mobile models exist?

GNR ME1650 dry screening (120–180 tph), YM1240 (60–100 tph) and YM1650 (120–180 tph) washing-screening.

How is sand moisture reduced?

A dewatering screen lowers washed-sand moisture to an acceptable level.

Is the plant portable?

Yes; the wheeled design enables fast relocation and setup between sites.

How do I get a quote?

Send material (clay content/moisture), capacity (tph) and product fractions; we prepare the right model and price.
