Portable Rock Crushers

Filter products

Mobile Primary Jaw Crusher | GNR 60-90-110 | 40-300 t/h | General Makina

Mobile Primary Jaw Crusher — GNR Series

The Mobile Primary Jaw Crusher combines a feeder hopper and jaw crusher on a single chassis. Feed 0-1100 mm, product 0-250 mm, capacity 40-300 t/h across GNR 60, 90 and 110 models. Towed by a single truck and set up without foundations via hydraulic legs.

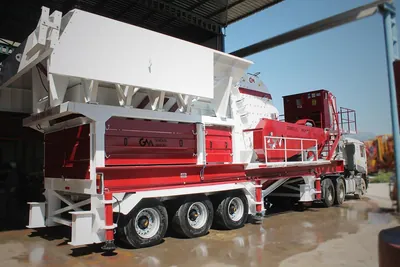

Mobile Primary Impact Crusher (HSI) | M-PDK01/02 | 80-500 t/h

Mobile Primary Impact Crusher (HSI) — M-PDK Series

The Mobile Primary Impact Crusher combines a feeder hopper and primary HSI crusher on one chassis. Feed 0-1200 mm, cubical product 0-70 mm, capacity 80-500 t/h. Up to 20:1 reduction in limestone/dolomite; models M-PDK01 and M-PDK02.

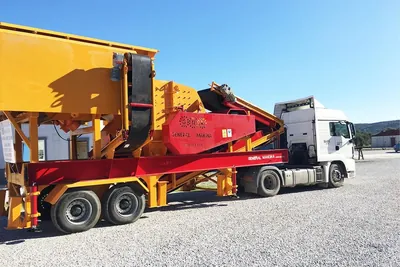

Mobile Secondary Impact Crusher | M-DMK 01/02/03 | 40-350 t/h

Mobile Secondary Impact Crusher — M-DMK Series

The Mobile Secondary Impact Crusher gathers a feeder hopper and secondary HSI crusher on one platform. Feed 0-350 mm, product 0-50 mm, capacity 40-350 t/h. A by-pass screen feeder makes it strong for road/sub-base material; models M-DMK 01/02/03.

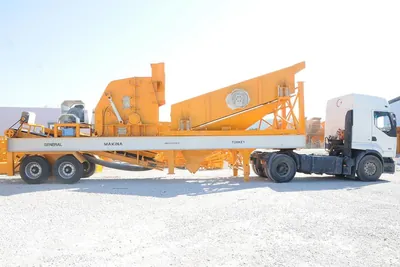

Mobile Pre-Screen Impact Crusher (DMK)

The Mobile Pre-Screen Impact Crusher (DMK) combines a vibrating pre-screen and a secondary impact crusher on one chassis; pre-screening sends only oversize to the crusher, raising capacity and efficiency. Feed 0-100 mm, product 0-30 mm, 40-300 t/h. Two crushing chambers, manganese liners, hydraulic-opening body.

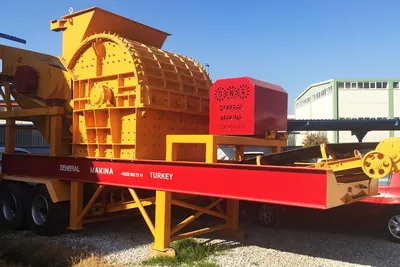

Mobile Cubicizer Crusher | GNR MK50/100/110 | 45-250 t/h | General Makina

Mobile Cubicizer Crusher — GNR MK Series

The Mobile Cubicizer Crusher is a durable portable secondary rotor crusher that makes cubical aggregate after the primary; it is essential for basalt plants. Feed 0-350 mm, product 0-25 mm, capacity 45-250 t/h. Hardox 500 liners; GNR MK50/100/110.

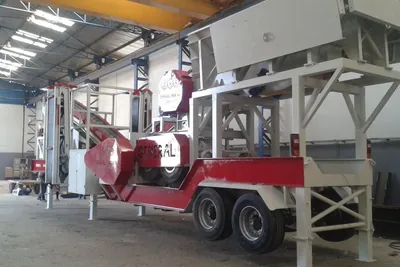

Mobile Roll Crusher | Dust-Free Sand | 50-350 t/h | General Makina

Mobile Roll Crusher (Double Roll)

The Mobile Roll Crusher produces dust-free, cubical fine product/sand by compression/shear between two counter-rotating rolls. Feed 0-50 mm, product 0-10 mm, capacity 50-350 t/h. Ideal for brittle, soft-to-medium materials such as coal, lime, potash and glass.

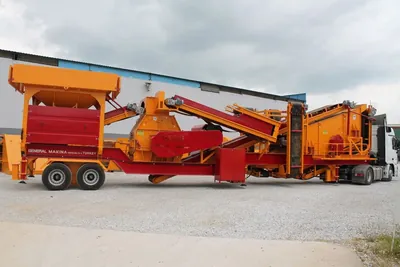

Mobile Sand Making Machine (VSI) | Tertiary | 60-250 t/h | General Makina

Mobile Tertiary Crusher — Sand Making Machine (VSI)

The Mobile Tertiary Crusher (Sand Making Machine) turns oversize screen material into crushed sand (0-10 mm) by vertical-shaft impact (VSI). Feed 0-200 mm, capacity 60-250 t/h. Belt-conveyor feeder, ISO 9001 + CE manufacture.

Mobile Jaw Plant with Wobbler Feeder

The Mobile Jaw Plant with Wobbler Feeder combines primary crushing and pre-screening on one chassis; the wobbler feeder gives superior performance in sticky, wet and clayey material. Capacity 250-450 t/h. A tumbling action feeds clean material to the jaw and lowers wear.

Mobile portable crushers are transportable units, each able to run independently. They suit users who want modular flexibility rather than a full plant — adding or removing a stage, reinforcing an existing line, or building different combinations across sites.

Unit options

The range covers mobile primary jaw (GNR 60/90/110, 40–300 tph) and pre-screen impact units (M-PDK/M-DMK, 40–500 tph). For cubical product there is the mobile cubitizer (MK50/100/110), for manufactured sand the tertiary VSI, and for dust-free sand the roller crusher. A wobbler-feeder jaw unit provides high tonnage (250–450 tph).

Selection logic

For abrasive material use primary jaw + secondary cone/VSI; for soft limestone, primary/secondary impact gives high reduction. Portable units are bought separately and staged as needed; the combination is built to your capacity and fraction target.

Full-plant bridge

Portable crushers become a flexible crushing-screening line with mobile screens and conveyors. For fixed layouts see stationary plants; for in-pit mobility see tracked plants. Contact us for a quote by model and capacity.

Frequently Asked Questions

What is the difference from a mobile plant?

A portable crusher is a standalone unit; a mobile plant integrates several stages. Portable units offer modular flexibility.

Which portable units exist?

Mobile jaw (GNR 60/90/110), primary/secondary impact (M-PDK/M-DMK), cubitizer (MK), tertiary VSI and roller crusher; 40–500 tph.

Can I add more units later?

Yes; portable units are bought separately and staged as needed or added to an existing line.

Which unit suits my material?

Jaw+VSI for abrasive rock; impact for soft limestone. Share your material analysis and we build the combination.

How do I get a quote?

Send capacity (tph), material and product fractions; we prepare the right unit/combination and price.
