Vibrating Screens

Vibrating screens are the equipment that separates crushed aggregate into the required size classes. The right screen choice directly sets product gradation and plant efficiency; the motion type (circular/elliptical/linear) is chosen by application.

Screen types

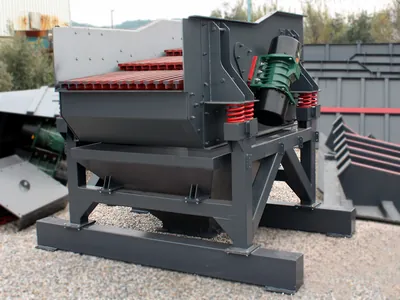

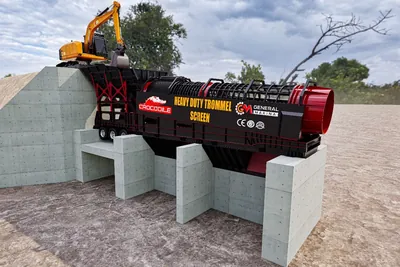

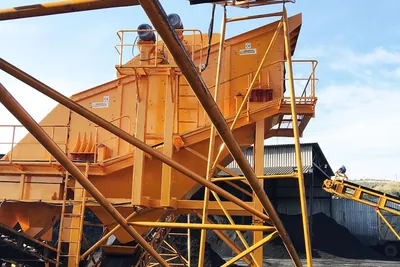

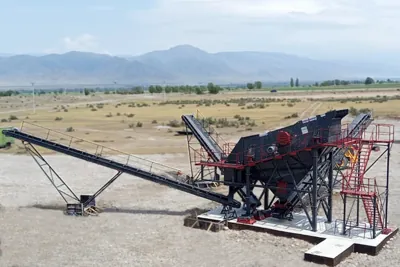

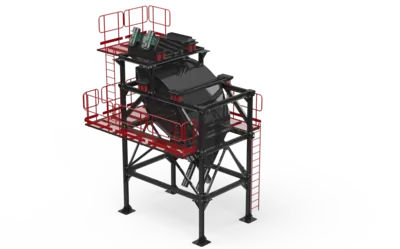

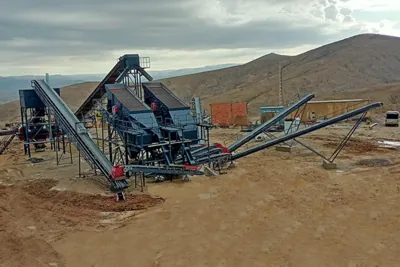

The conventional (circular motion, 100–400 tph) is general-purpose; the twin screen (100–500 tph) gives high capacity with two decks; the top-drive (elliptical, 100–400 tph) handles difficult material; the banana screen gives about 30% more capacity in the same area. The grizzly screen pre-separates, the trommel (rotary) screen suits clayey-wet and recycling material, and the fine screen (600 micron linear) is for precise fine separation.

Selection logic

For clayey/wet material use the trommel; for high capacity, the twin or banana screen; for fine sand separation, the linear fine screen. Capacity, deck count and screen aperture are sized to the target fraction.

Full-plant bridge

Screens, with crusher and conveyor, form the separation stage of the crushing-screening line; they pair with mineral washers for wash-screening. They integrate into stationary, mobile and tracked plants. Contact us for a quote by model and capacity.
