100 t/h GNR 640 Mobile Hard-Ore Crushing Plant - Turkey
Challenge
A crushing-screening plant with 100 t/h capacity was required in Turkey.
Solution
Installed equipment: jaw crusher, vibrating screen, screen.
Result
The plant was commissioned at 100 t/h capacity.

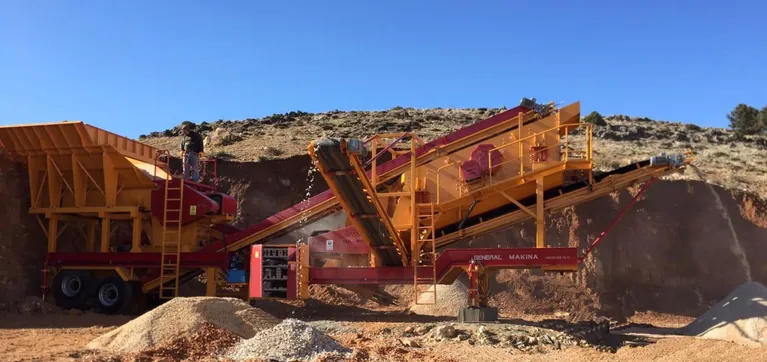

Installed and commissioned in Turkey, the GNR 640 Mobile Crushing Plant took its place on site as a compact yet high-performance crushing and screening solution for mid-scale mining sites, road construction and infrastructure projects, aimed at the stable processing of highly abrasive hard rock and ore.
100 t/h Capacity and Two-Stage Crushing
Configured for hard-ore sites, the plant reaches 100 tons per hour of crushing and screening in this project. Accepting feed up to 500 mm, the system pulverises even the hardest rock with ease by pairing a primary GPJ 60 jaw crusher with a purpose-built GNR 50 secondary rotor crusher.
Closed-Circuit Precision Aggregate Production
Mounted on a single portable chassis and running in closed circuit, the plant produces standard-compliant construction aggregate in 0-5 mm, 5-12 mm and 12-19 mm sizes thanks to its 1200x4000 mm 3-deck vibrating screen. With economical investment cost and fast transport, it added uninterrupted production efficiency to the project.
Frequently Asked Questions
What is the plant capacity?
In this project the GNR 640 mobile crushing plant reaches 100 tons per hour of crushing and screening.
What is the maximum feed size?
The system accepts feed up to 500 mm.
Which crushers were used?
A GPJ 60 jaw crusher in the primary stage and a GNR 50 secondary rotor crusher in the secondary stage.
What aggregate sizes are produced?
The 1200x4000 mm 3-deck screen produces construction aggregate in 0-5 mm, 5-12 mm and 12-19 mm sizes.
Does the plant run in closed circuit?
Yes, the plant operates on a single portable chassis in closed circuit.
