GNR 01 in Türkiye: A Closed-Circuit Mobile Line Producing Four Aggregates
Challenge
A 120-180 t/h mobile plant was needed in Turkey for a quarry supplying aggregate to infrastructure, roads and concrete-asphalt plants.
Solution
Closed-circuit GNR 01 mobile crusher: 2-chamber GPS 1210 impact rotor crusher, 1600x5000 mm 4-deck vibrating screen and return conveyor.
Result
The plant was delivered after field tests and produces 0-5, 5-12, 12-19 and 19-40 mm cubic aggregate.

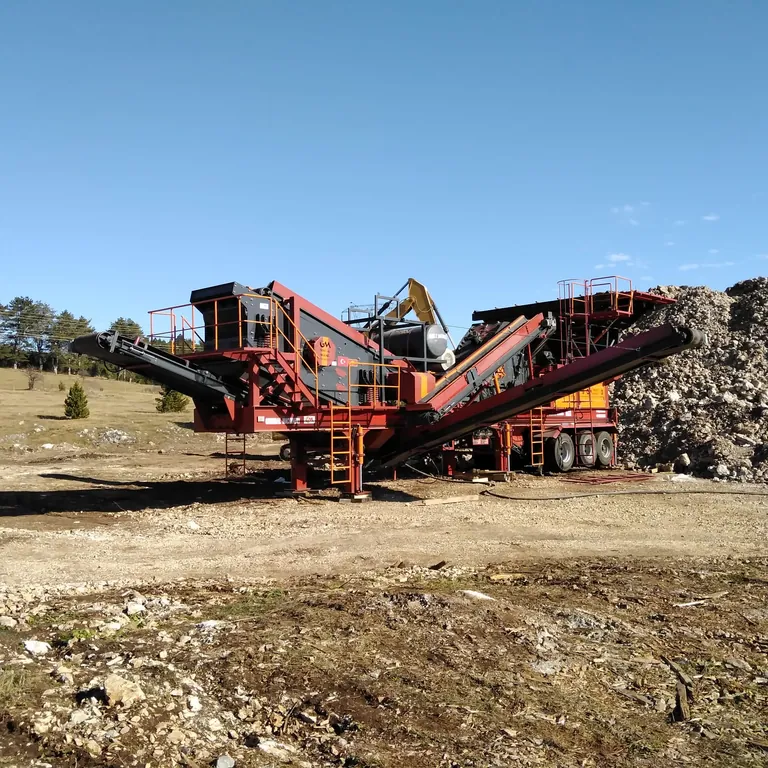

The GNR 01 Mobile Crushing Plant, prepared for a quarry that sends quality aggregate to infrastructure work, road building and concrete-asphalt plants, was erected in Türkiye and handed over to our customer once the site tests were complete.
120-180 t/h with the GPS 1210 Impact Rotor Crusher
At the heart of the plant, which can produce 120-180 tonnes per hour, sits the GPS 1210 impact rotor crusher. The crusher works with a 2-chamber box: run-of-mine rock from the quarry leaves the first chamber at 0-50 mm, and the second chamber brings it down to 0-25 mm. The result is a high reduction ratio.
Four Separate Aggregates from a Four-Deck Screen
At the end of the line is a 4-deck vibrating screen measuring 1600x5000 mm. Working together with the closed-circuit return conveyor, it separates standard-compliant cubical material in 0-5, 5-12, 12-19 and 19-40 mm sizes. Easy to transport and quick to erect hydraulically, the GNR 01 keeps producing on site without interruption.
GNR 01 Closed-Circuit Plant – FAQ
What is the hourly capacity of the plant?
The GNR 01 mobile crusher works with a crushing and screening capacity of 120-180 tonnes per hour.
Which crusher does the plant use?
A GPS 1210 impact rotor crusher with a two-chamber box.
Which aggregate sizes are produced?
The 4-deck screen yields 0-5, 5-12, 12-19 and 19-40 mm cubical aggregate.
Does the plant run in closed circuit?
Yes, oversize material is sent back to the crusher by the return conveyor.
What size is the screen?
The plant has a 4-deck vibrating screen measuring 1600x5000 mm.
